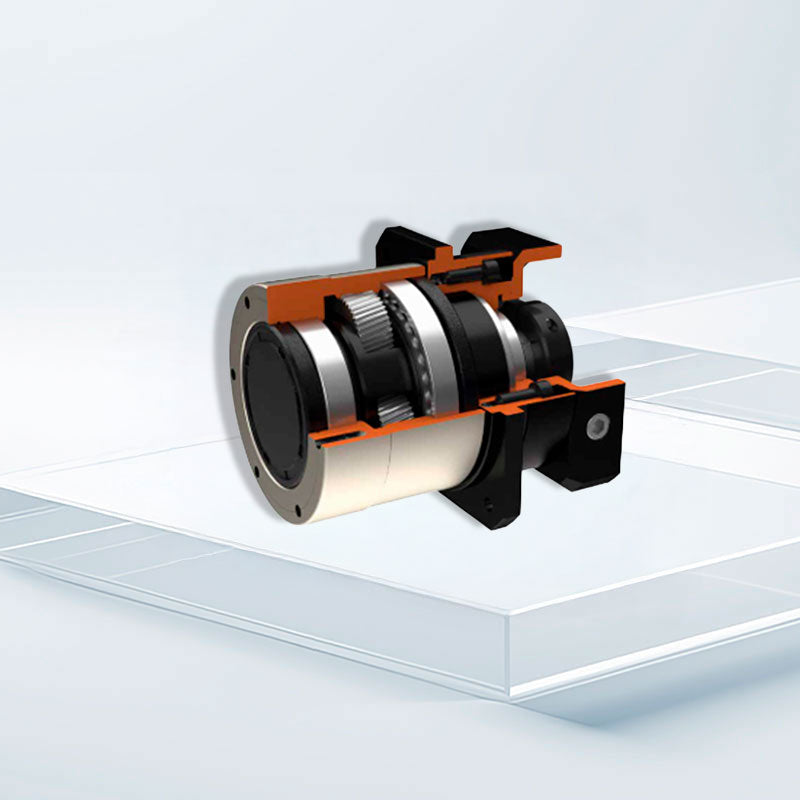

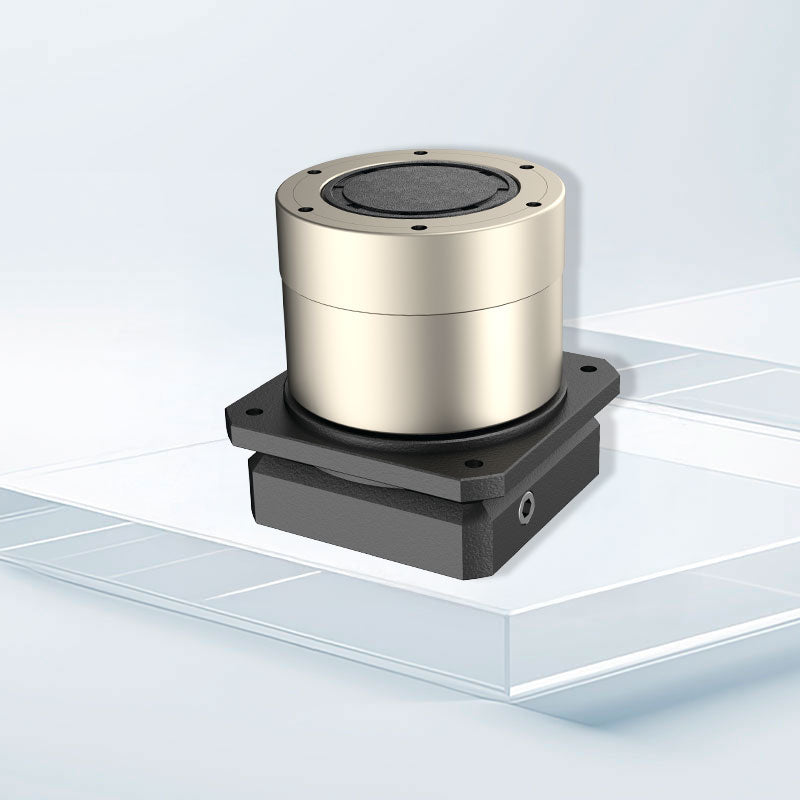

Servobox SR 2-Stage High-Precision Planetary Gearbox

The Servobox SR 2-Stage extends the SR platform with a second planetary stage for higher reductions from 10 to 90. It maintains IP65 sealing, 3000 rpm rated input (6000 rpm max), and synthetic grease lubrication. Efficiency is specified at ≥94% with backlash ≤8 arcmin, offering higher reduction capability with compact industrial construction.

Technical Specifications

Type: 2-Stage planetary servo gearbox

• Ratios: 10, 15, 20, 24, 30, 36, 40, 45, 60, 90

• Efficiency: ≥94%

• Backlash: ≤8 arcmin

• Rated input speed (n1N): 3000 rpm

• Max input speed (n1B): 6000 rpm

• Nominal torque (T2N): 68–271 Nm depending on ratio/size

• Acceleration torque: 1.5× nominal torque

• Emergency stop torque: 3× nominal torque

• Max radial load: up to 7200 N

• Max axial load: up to 3600 N

• Torsional rigidity: 10–27 Nm/arcmin

• Protection rating: IP65

• Operating temperature: −25 °C to +90 °C

• Lubrication: Synthetic grease

• Mounting: Any orientation

• Service life: >30,000 h (S5), >15,000 h (S1)

• Sizes: 82 / 100 / 132

• Weight: 2.8–10.1 kg depending on size
