Orbbec 3D Technology International, Inc.

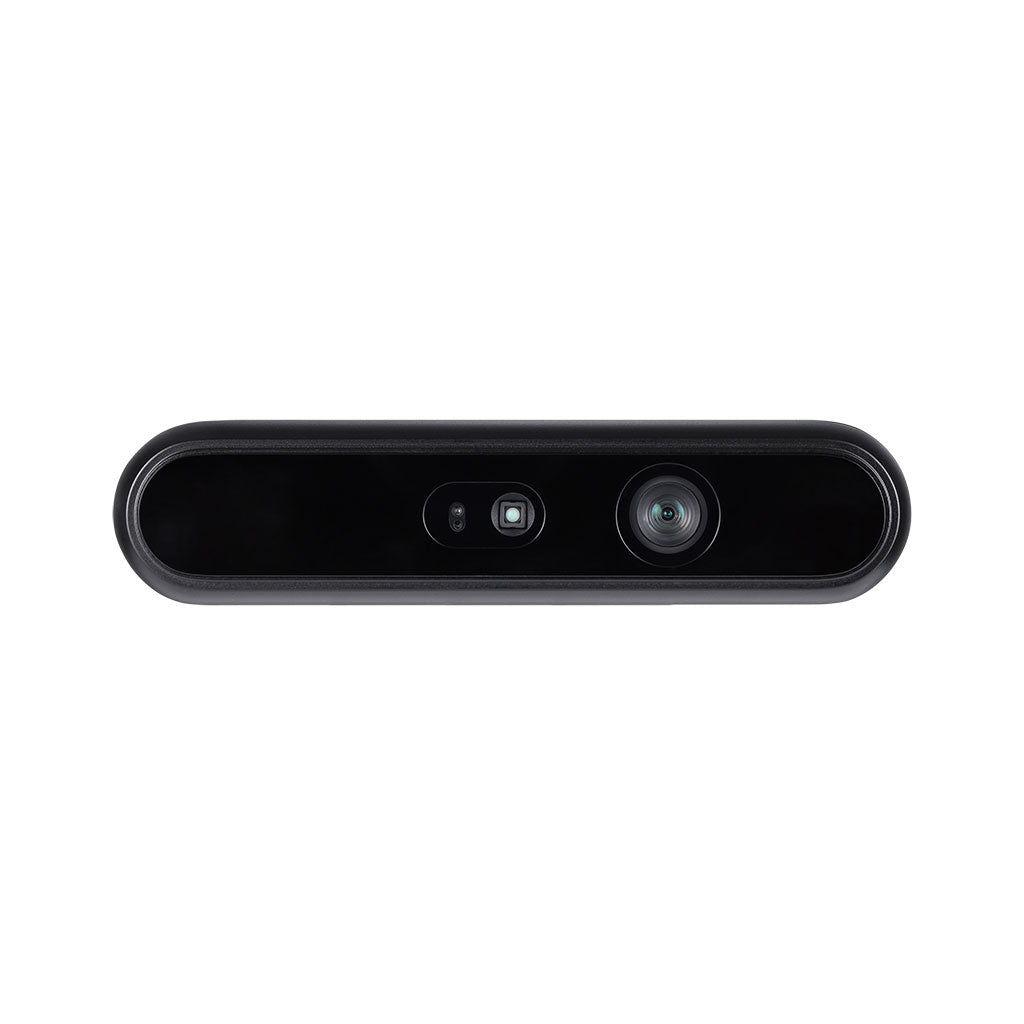

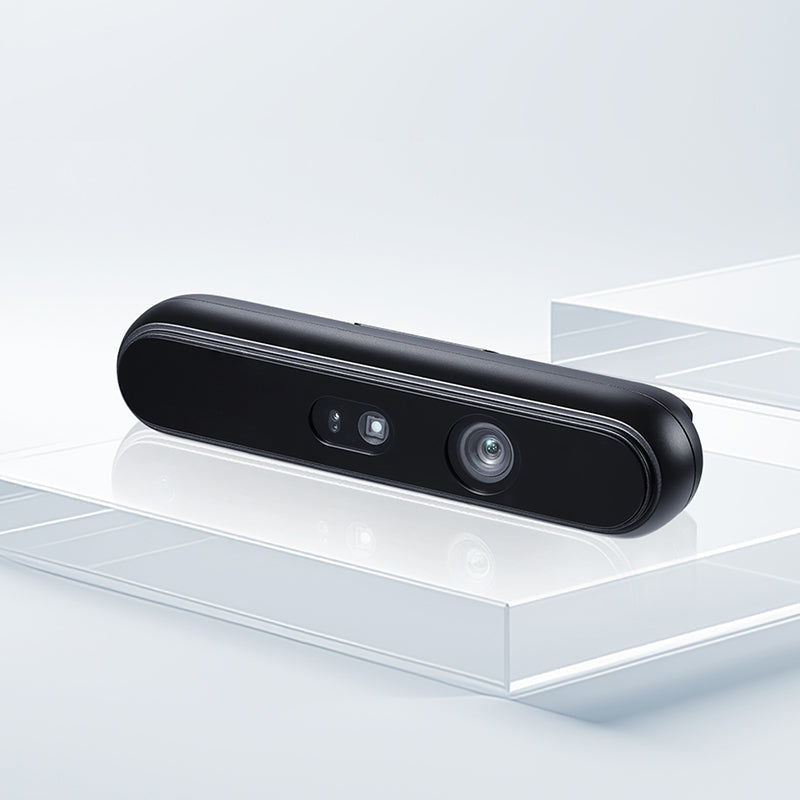

Gemini 336L
Gemini 336L
SKU:100100487
Regular price
€351,76 EUR
Regular price
Sale price
€351,76 EUR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Gemini 336L enhances active infrared imaging by filtering out the visible light spectrum, providing stable, accurate images even in difficult lighting conditions such as reflective indoor surfaces that create glare.
- Stable infrared images
- Further and more precise
- IP65 rating
Product attributes
| Operating environment | Indoor / Outdoor |
| Technology | Active and passive stereo |
| Depth range | 0.17m-20m+ |
| FoV depth | 90° x 65° @ 2m (1280 x 800) |
| Depth resolution and frame rate | Up to 1280 x 800@30fps |
| RGB FoV | 94° x 68° |
| RGB resolution and frame rate | Up to 1280 x 800 @ 60fps |
| Energy consumption | ≤3.0W |
| Connector | USB 3.0 & USB 2.0 Type-C |
| Operating temperature | -10 - 50ºC |
| Weight | 135g |
| Dimensions | 124mm x 29mm x 27.7mm |
| Ideal range | 0.25m-6m |
| Camera Controller | UVC |
| Feeding | DC 5V & ≥1.5A |
