Orbbec 3D Technology International, Inc.

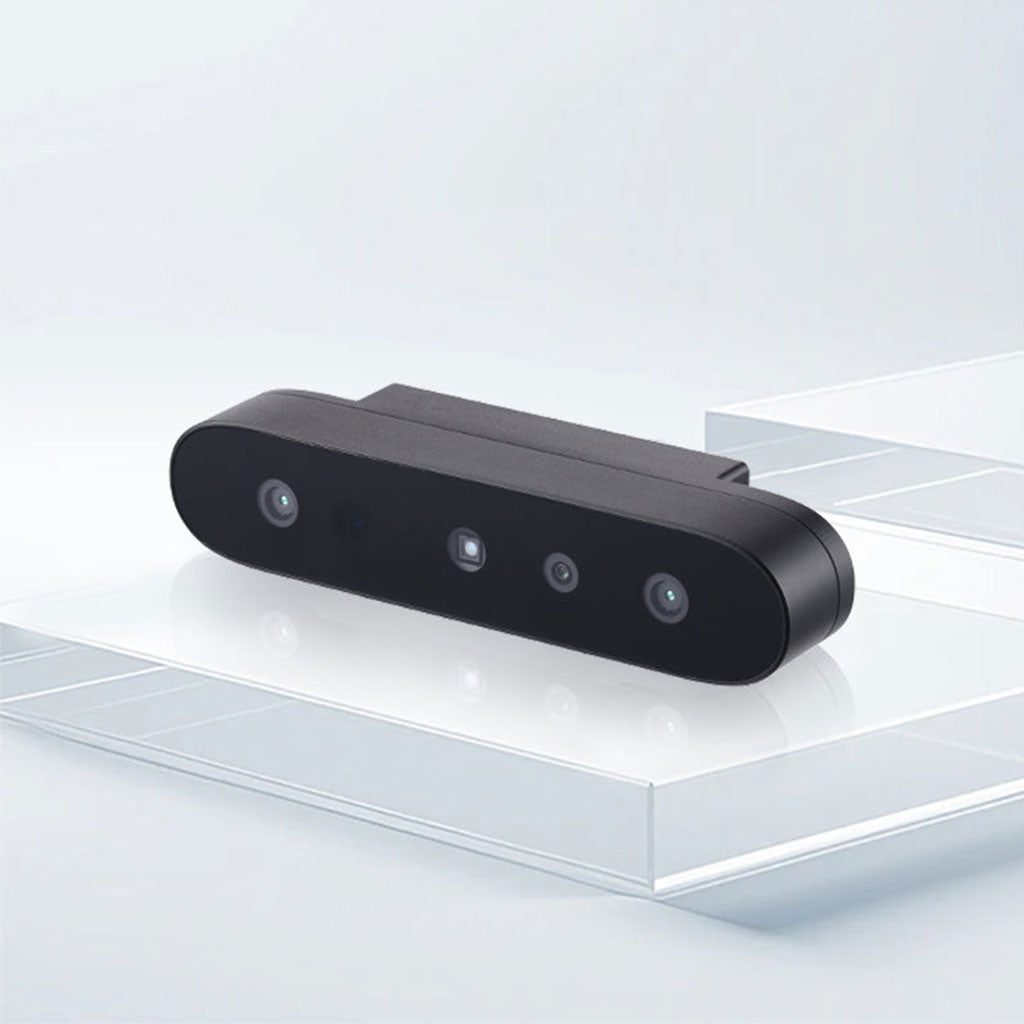

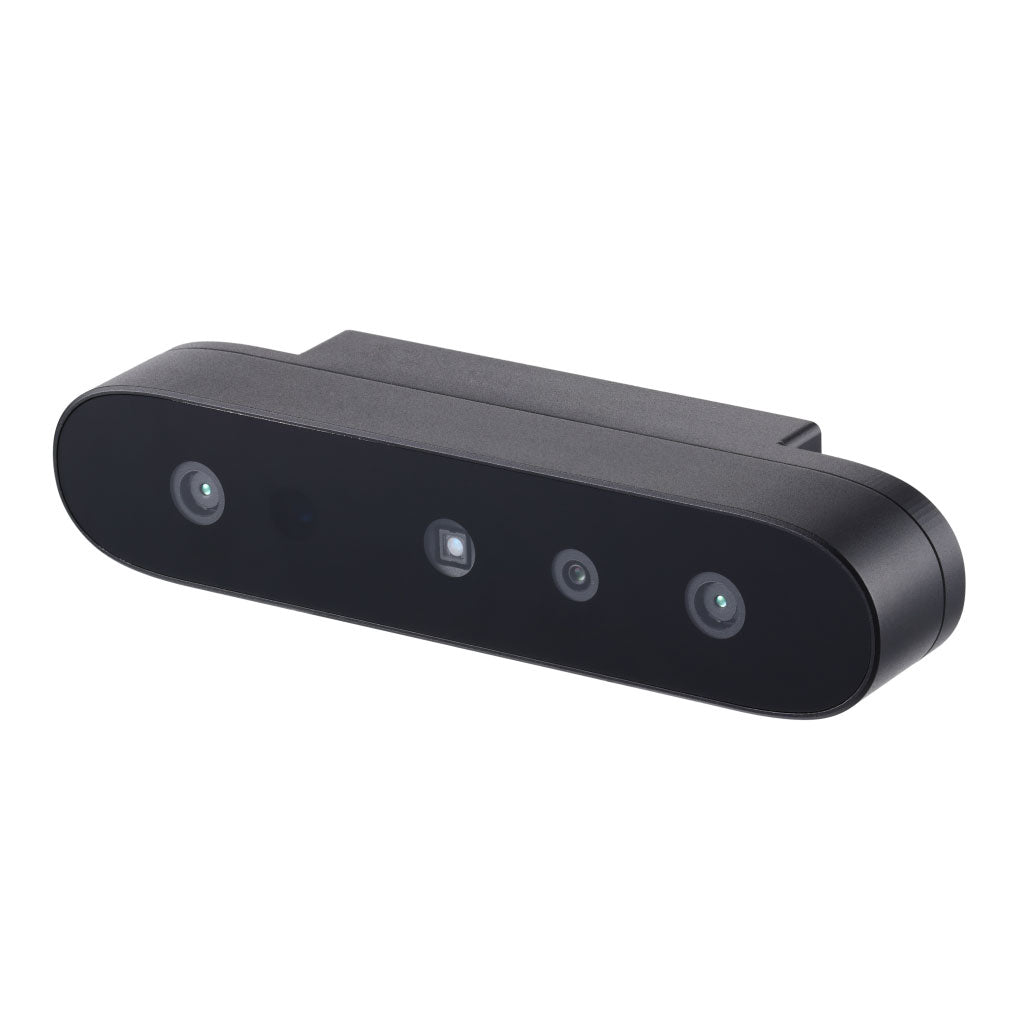

Gemini 215
Gemini 215
SKU:100100495
Regular price
€200,83 EUR
Regular price
€0,00 EUR
Sale price
€200,83 EUR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Active stereo, reliable interior scanning even in textureless scenes
- On-chip deep processing
- Excellent depth accuracy < 0.5mm at 300mm
- Short range depth 15cm - 70cm
- Real-time depth processing up to 30fps
- Minimum distance between points/resolution of 0.16 mm
- Multi-device synchronization to expand the field of view
Product attributes
| Operating environment | 0ºC - 40ºC; Indoor/Outdoor; 5% - 90% RH |
| Technology | Active stereo |
| Depth range | 0.15m-0.70m |
| Wavelength |
850nm |
| Spatial precision |
< 0.5 mm（1280 X 800 @ 300mm） ,< 1.5 mm（1280 |
| FoV depth | H60.7° x V43.6° @ 0.7m |
| Depth resolution and frame rate | Up to 1280 × 800 @ 30fps |
| RGB FoV | H74.7° x V46.2° ± 3° |
| RGB resolution and frame rate | Up to 1920 × 1080 @ 30fps |
| Data output |
USB 3.0 & USB 2.0 |
| Weight | 105g ± 3g |
| Dimensions | 120mm x 26mm x 30mm |
| Facility | Bottom 1 x 1/4-20 UNC ; Back 2 x M3 |
