Astra Mini Pro

Astra Mini Pro

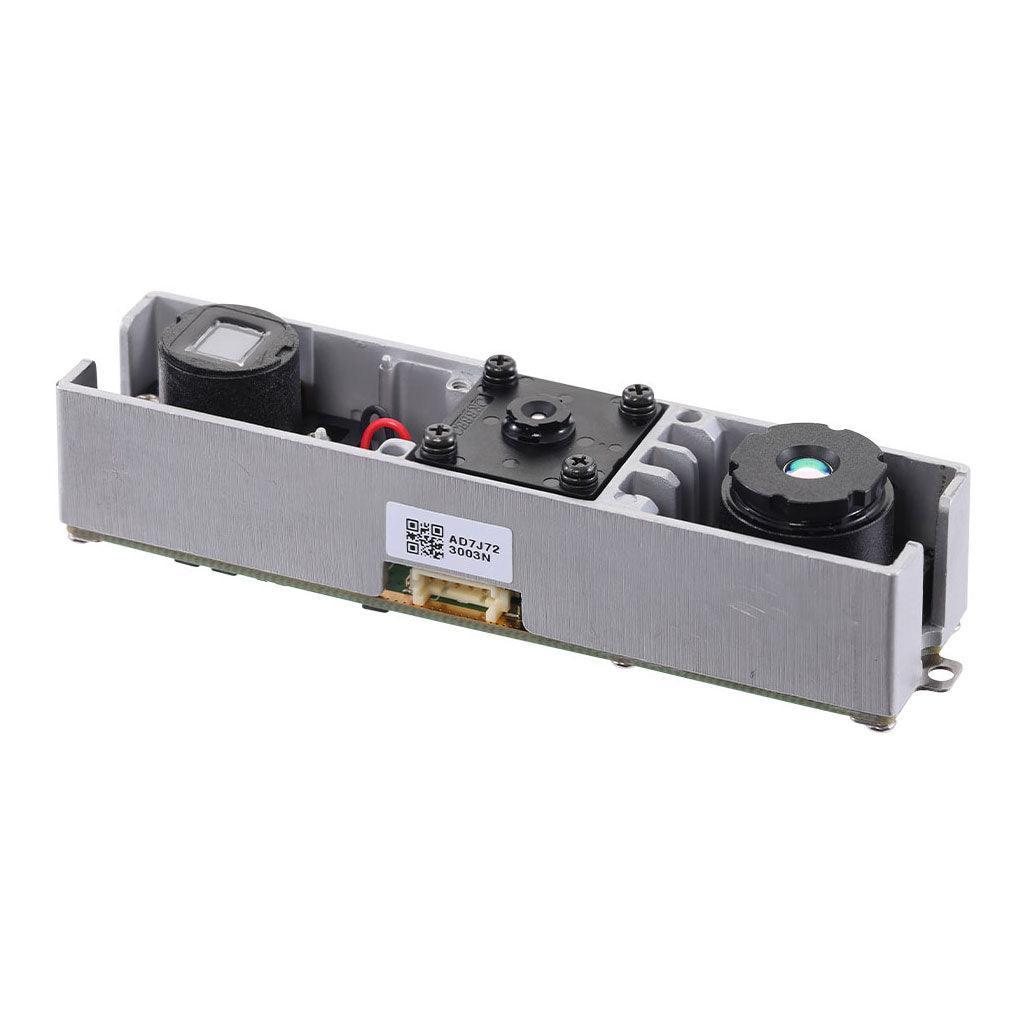

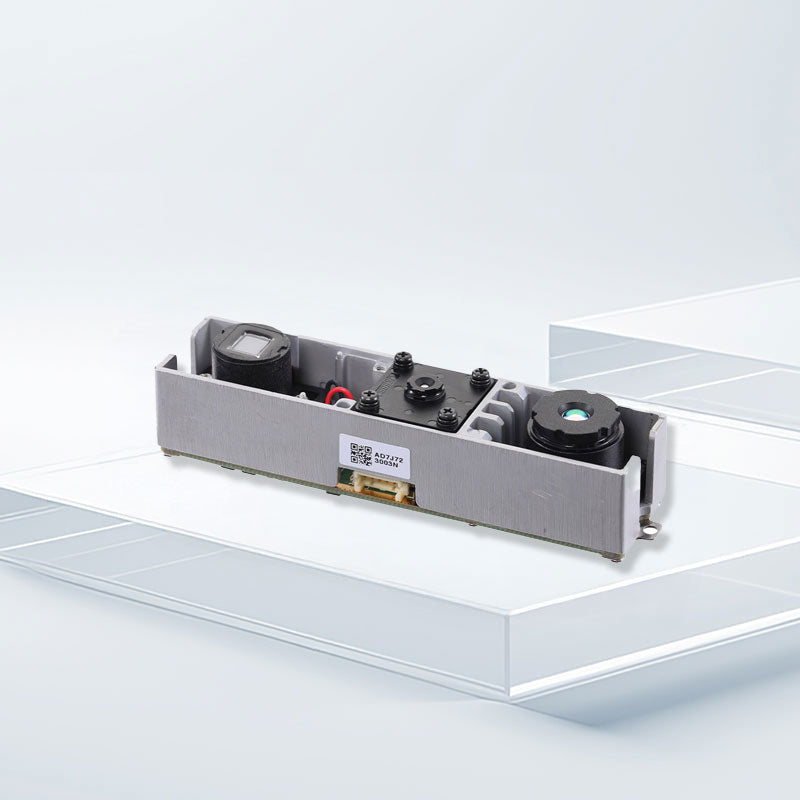

Orbbec Depth Camera, Astra Mini Pro

€131,30 EUR
€131,30 EUR
Sale Sold out
Shipping calculated at checkout.
Astra Mini series 3D cameras are offered as bare modules for easy integration into embedded applications. The Astra Mini series is based on Orbbec’s custom ASIC structured light technology for high-quality depth processing and power + single-cable USB 2.0 connectivity. Astra Mini Pro provides developers with the freedom to tailor their needs to best suit their operating requirements. Orbbec’s OpenNI SDK makes it easy to configure and deliver highly accurate and reliable data for indoor operation.

  • Field of view at 58.4° horizontal and 45.5° vertical
  • High quality depth data output from 0.35 to 5 m (depending on camera model)
  • Up to 30fps with 640X480 depth resolution
  • Up to 30 fps with 640X480 RGB resolution
  • Compatible with USB 2.0 for power and data

Product attributes
Operating environment Inside
Technology Structured light
Depth range 0.6m-5m
Wavelength 850nm
Processor Orbbec ASIC
Spatial precision ±3mm @ 1m
FoV depth H58.4° V45.5°
Depth resolution and frame rate Up to 640X480@30fps
RGB FoV H63.1° V49.4°
RGB resolution and frame rate Up to 640X480@30fps
Energy consumption Average <2.4W
Connector USB 2.0 Type-A
Operating temperature 10℃ - 40℃
Weight 35 ± 5g
Dimensions 80mm x 20mm x 20mm
